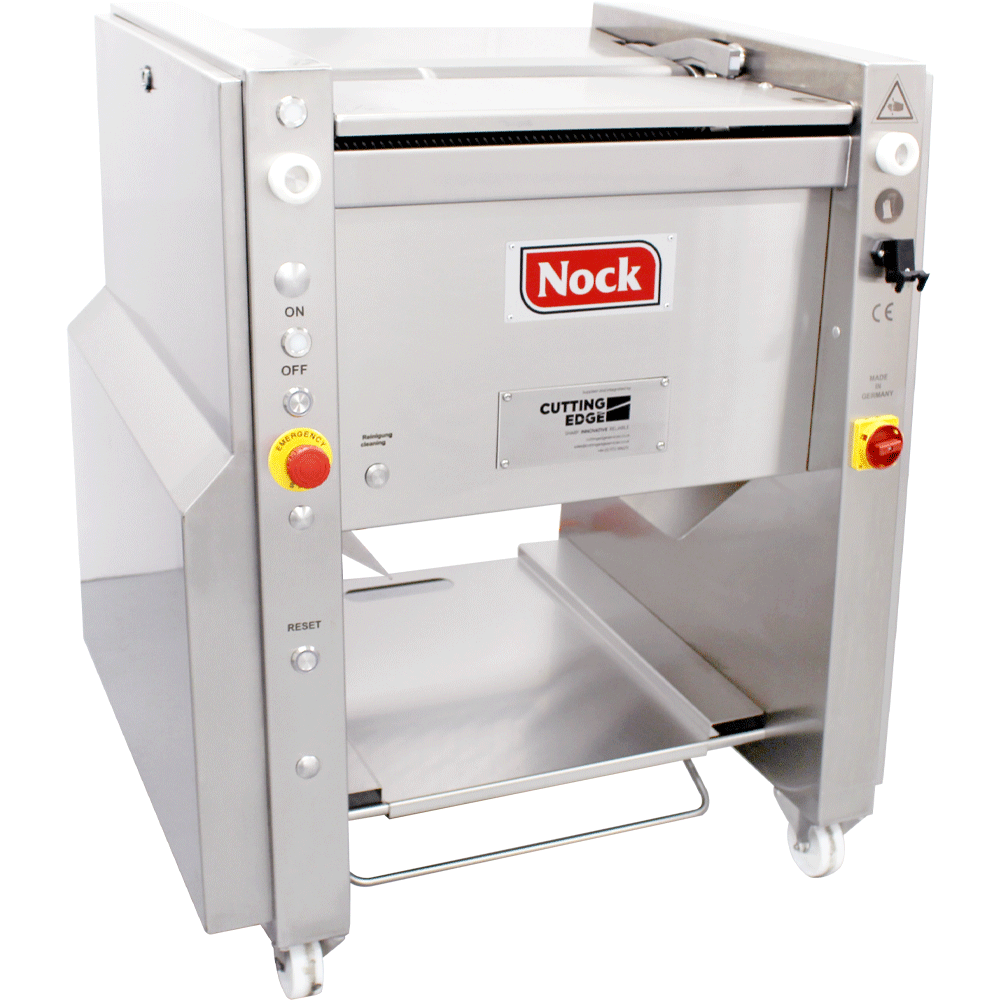

The ideal choice for open-top membrane skinning
The Nock range of membrane skinning systems delivers superior performance without compromising operator comfort. Designed for simpler maintenance, and with a space saving design – each of these membrane skinning machines is perfect for improving yield in busy working environments.

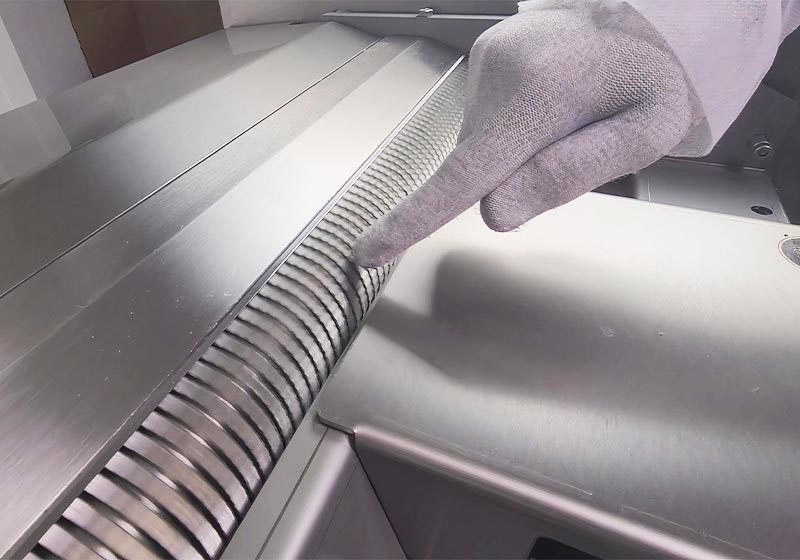

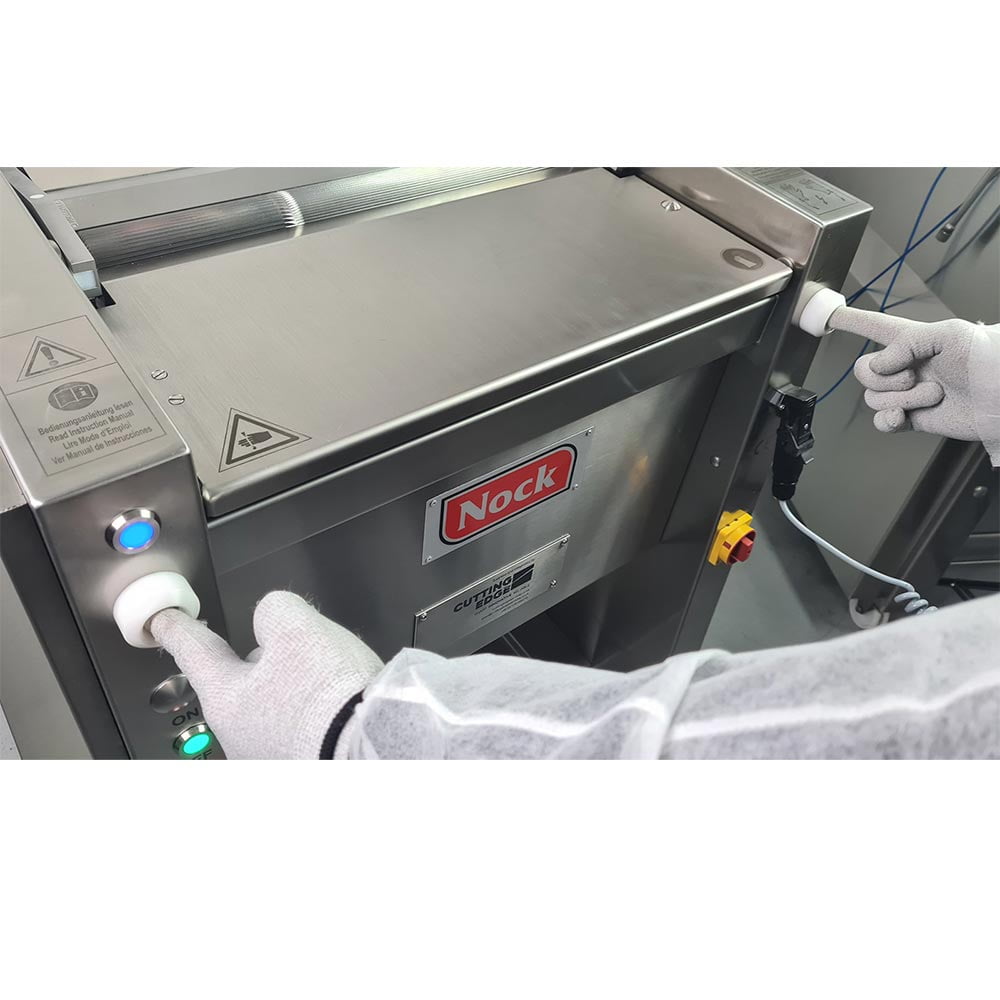

For over 30 years, Cutting Edge Services has been at the forefront of R&D for operator safety. For these past two years, our team of engineers have worked in conjunction with our partner, Nock, to develop a millisecond activation system that provides maximum operator safety, helping to prevent accidents and reduce near misses. The result is the revolutionary ICO 3000 Cutting Edge Safety System, exclusively available for NOCK membrane skinning machines.
25 YEARS OF ENGINEERING EXCELLENCE & SUPERB QUALITY

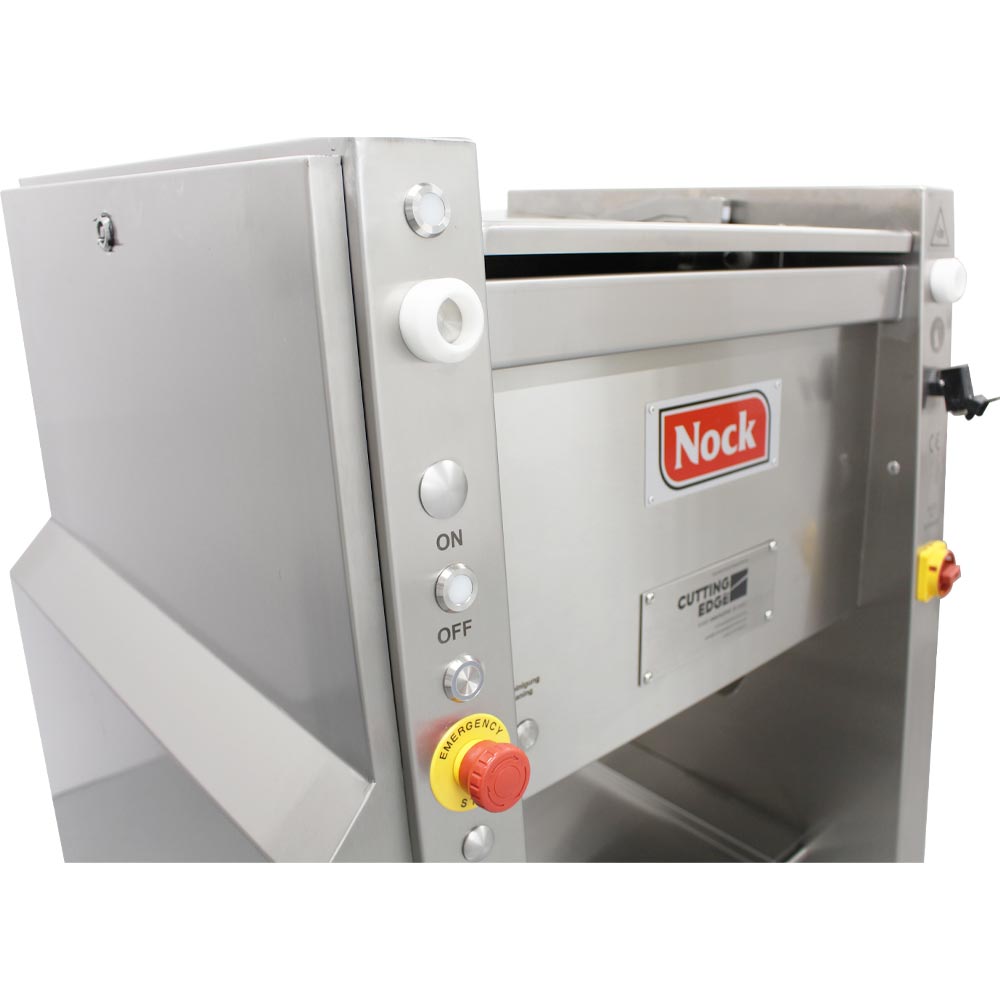

EXPERTLY DESIGNED TO BE SIMPLY EFFICIENT & SAFE
MODULAR & COST-EFFECTIVE POWER PLATE® TECHNOLOGY

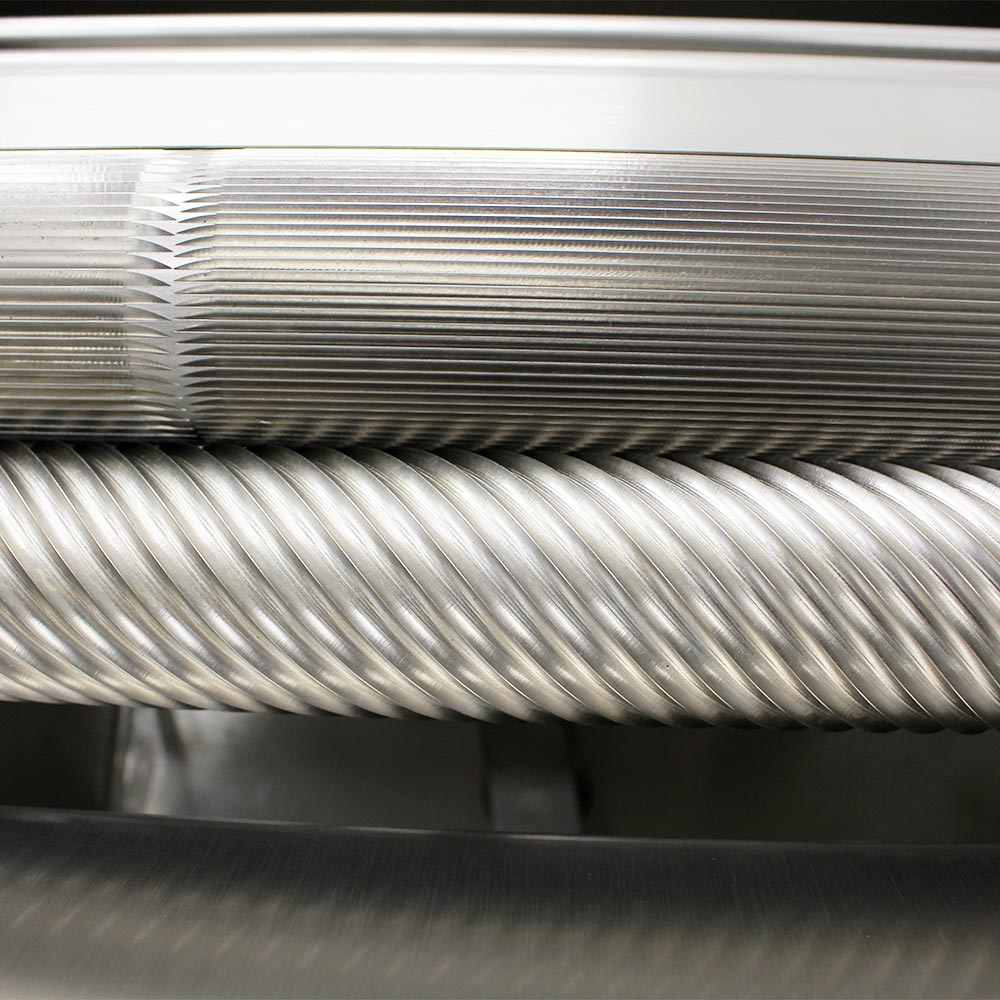

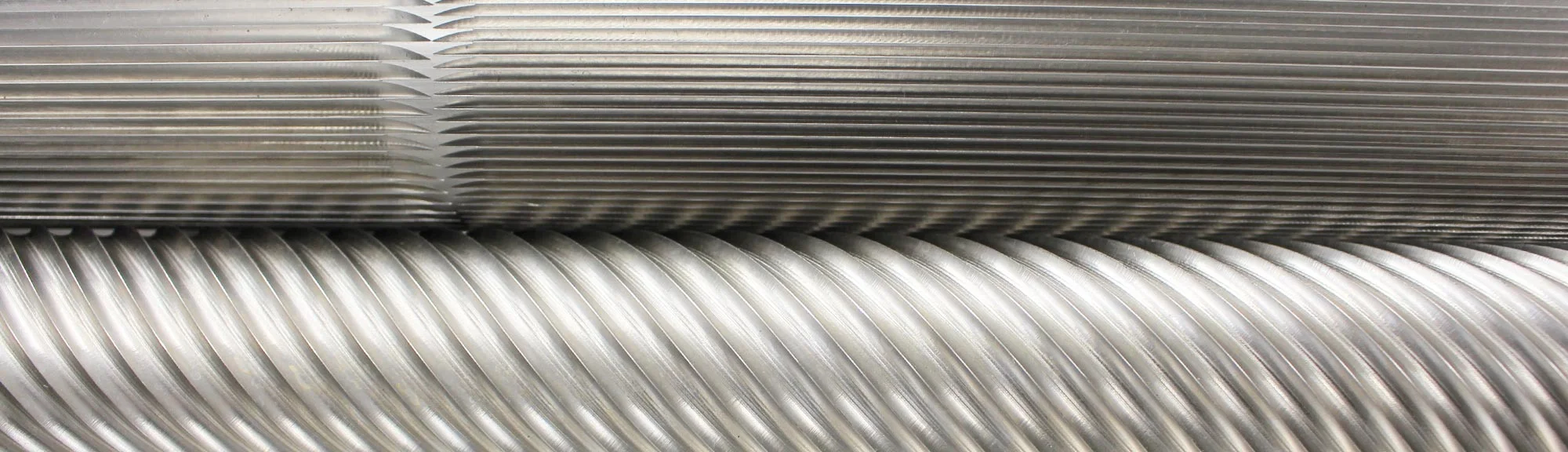

PRECISION SKINNING WITH EXCELLENT QUALITY RESULTS
Model | Cutting Width | Cutting Speed | Overall Dimension W x H x D | Weight | Motor Performance | Electrical Connection | Compressed Air Connection | Plug Coupling | Compressed Air Requirement |
---|---|---|---|---|---|---|---|---|---|
Nock Vliesex V 460N Skinner
|
37 m/min |
430 mm |
750 x 970 x 700 mm |
150 kg |
0.75 kW |
3 AC – 400 V – 50 Hz IEC 60309 16 A 6h other voltages upon request |
5 < p <10 |
DN 7.2 (G1/4 external) |
approx. 250 l/min (ambient pressure) |

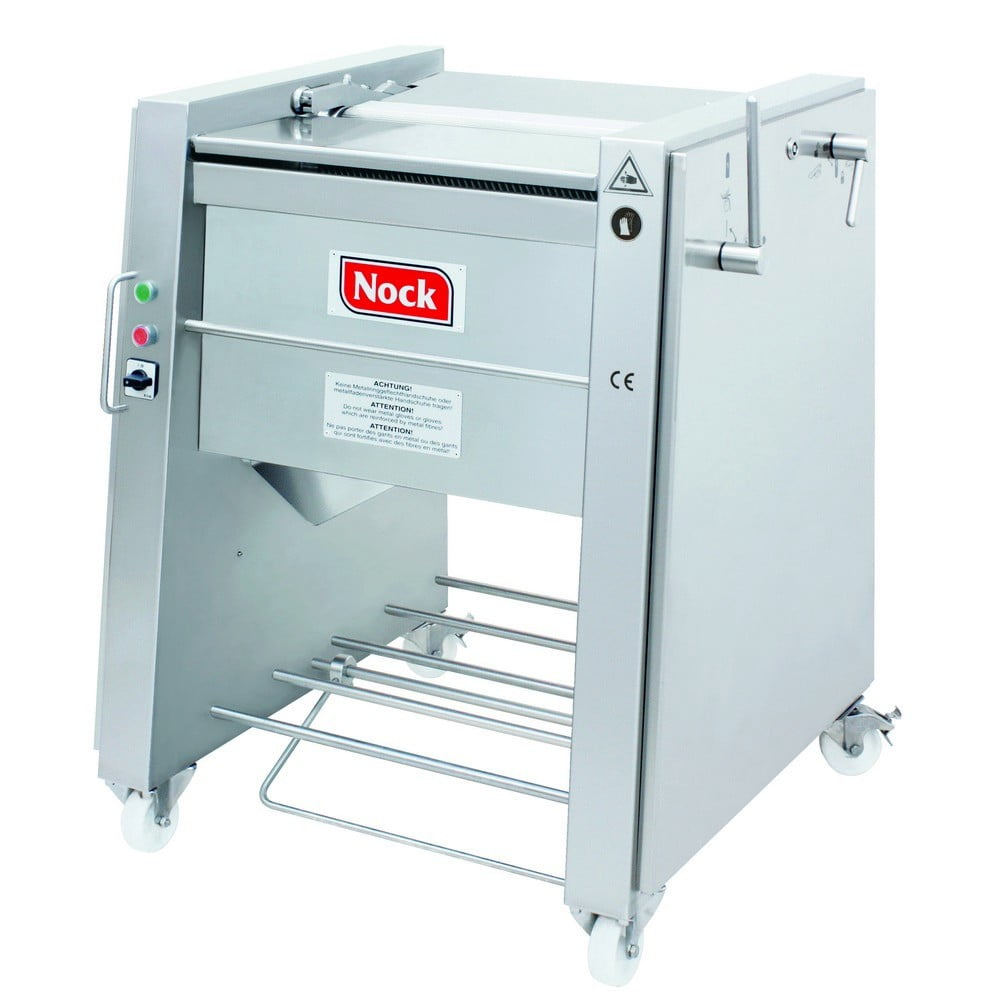

Nock Vliesex V 560N Skinner
|
500 mm |
37 m/min |
815 x 970 x 700 mm |
180 kg |
0.75 kW |
3 AC – 400 V – 50 Hz IEC 60309 16 A 6h other voltages upon request |
5 < p <10 |
DN 7.2 (G1/4 external) |
approx. 250 l/min (ambient pressure) |
Nock Vliesex V 4744 Turbo Skinner
|
430 mm |
44 m/min |
750 x 970 x 700 mm |
170 kg |
1.1kW |
3 AC – 400 V – 50 Hz IEC 60309 16 A 6h other voltages upon request |
– 5 < p <10 bar |
DN 7.2 (G1/4 external) |
approx. 250 l/min (ambient pressure) |

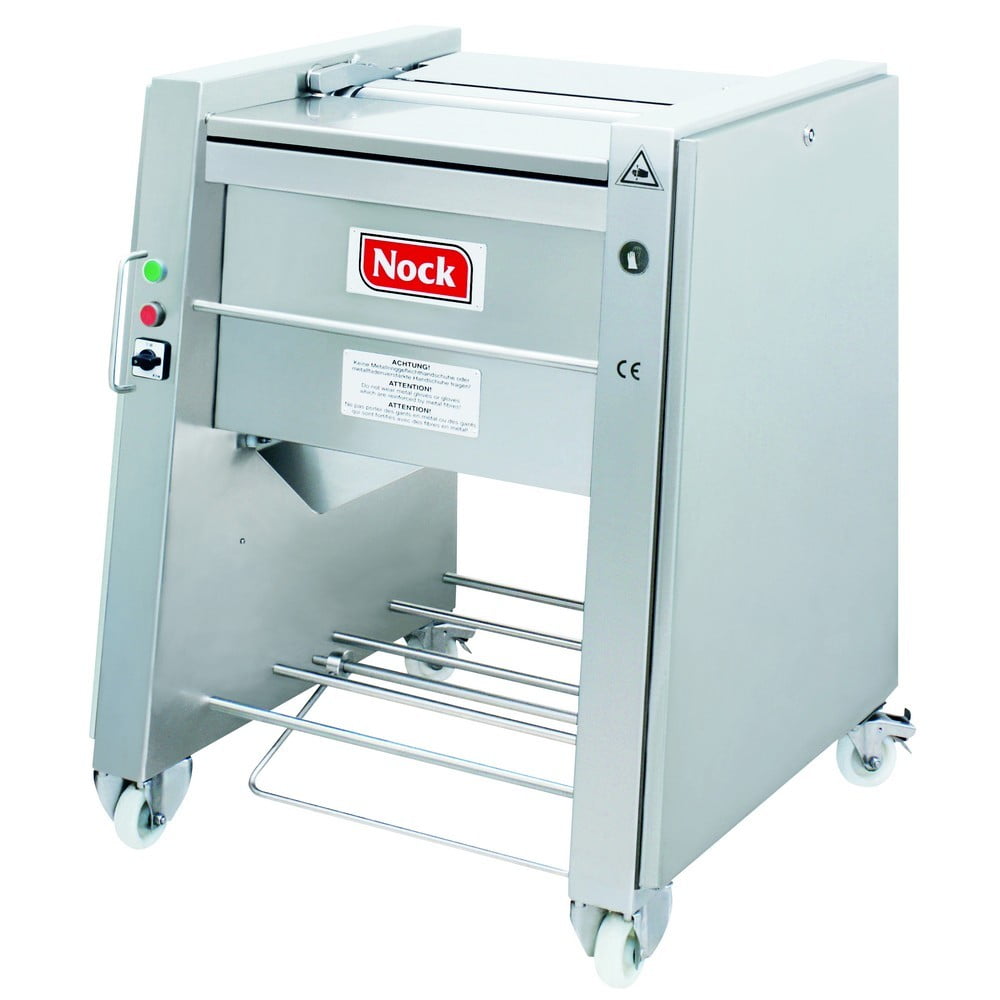

Nock Vliesex V 5744 Turbo Skinner
|
500mm |
44 m/min |
815 x 970 x 700 mm |
200 kg |
1.1kW |
3 AC – 400 V – 50 Hz IEC 60309 16 A 6h other voltages upon request |
-5 < p <10 bar |
DN 7.2 (G1/4 external) |
approx. 250 l/min (ambient pressure) |
For over 30 years, Cutting Edge Services has been at the forefront of R&D for operator safety. For these past two years, our team of engineers have worked in conjunction with partner, Nock, to develop a millisecond activation system that provides maximum operator safety, helping to prevent accidents and reduce near misses.
