The Nock Automatic Return Skinners are designed for precise and efficient membrane trim removal. Built to handle flat muscle groups and larger cuts such as silverside, topside, and LMCs, this range is engineered for seamless integration into your existing processing line. With a focus on efficiency and safety, it eliminates the need for open blades, reducing health risks and eliminating the requirement for specific PPE.
These models boast Auto-Return technology, ensuring that the product is automatically redirected towards the operator after processing, minimising handling and optimising workflow. The design integrates a quick-release system, allowing for the swift removal of essential components without the need for specialised tools. This feature simplifies the cleaning, servicing, and overall maintenance process, making it accessible for operators of any skill level.
Features
Benefits
25 years of engineering excellence & superb quality
Expertly designed to be simply efficient & safe
Modular & cost-effective Power Plate® technology
Precision skinning with excellent quality results
Model | Cutting Width | Cutting Speed | Max T/put Height | Blade Gap | Apply Length Infeed | Overall Dims | Weight |
---|---|---|---|---|---|---|---|

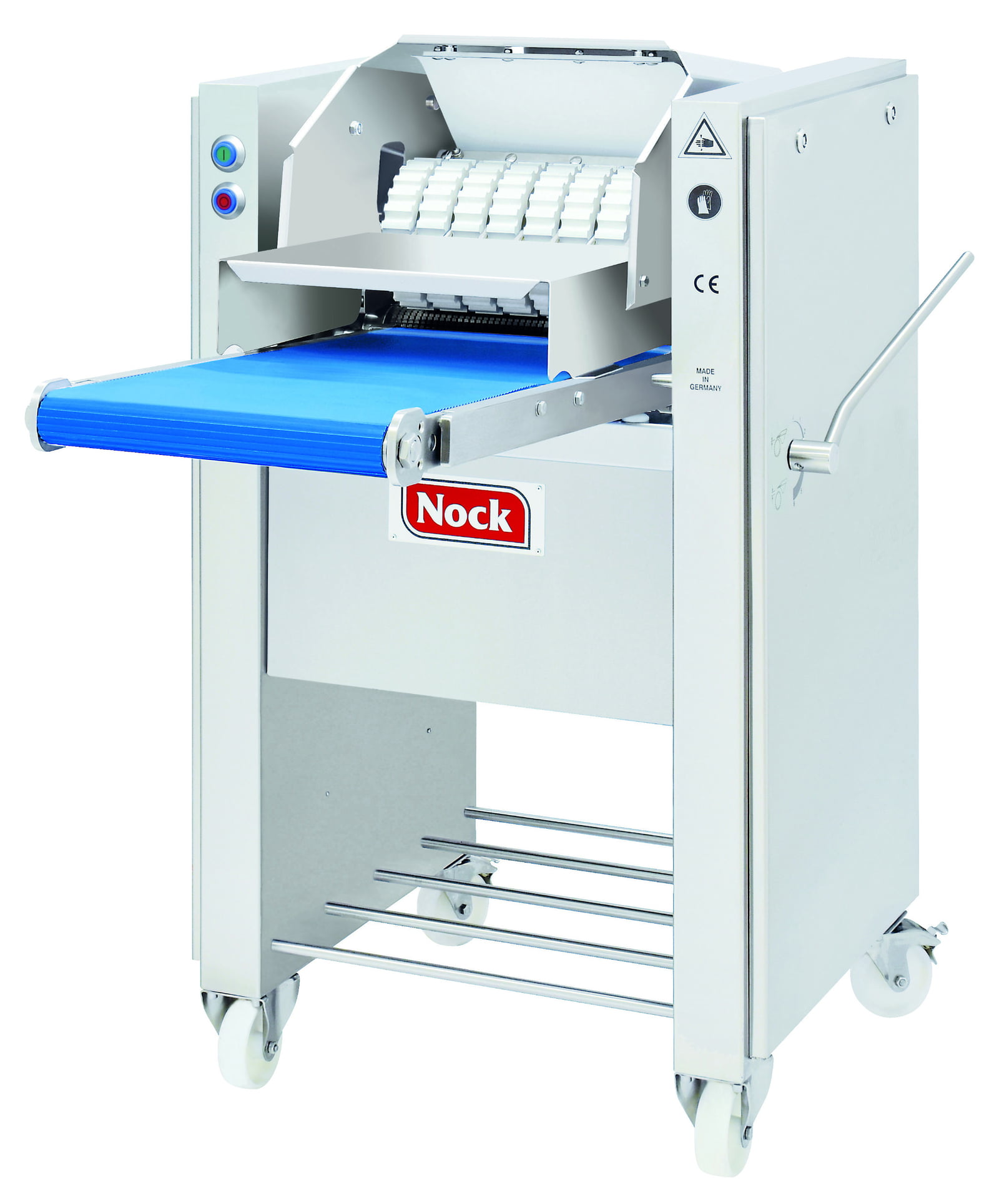

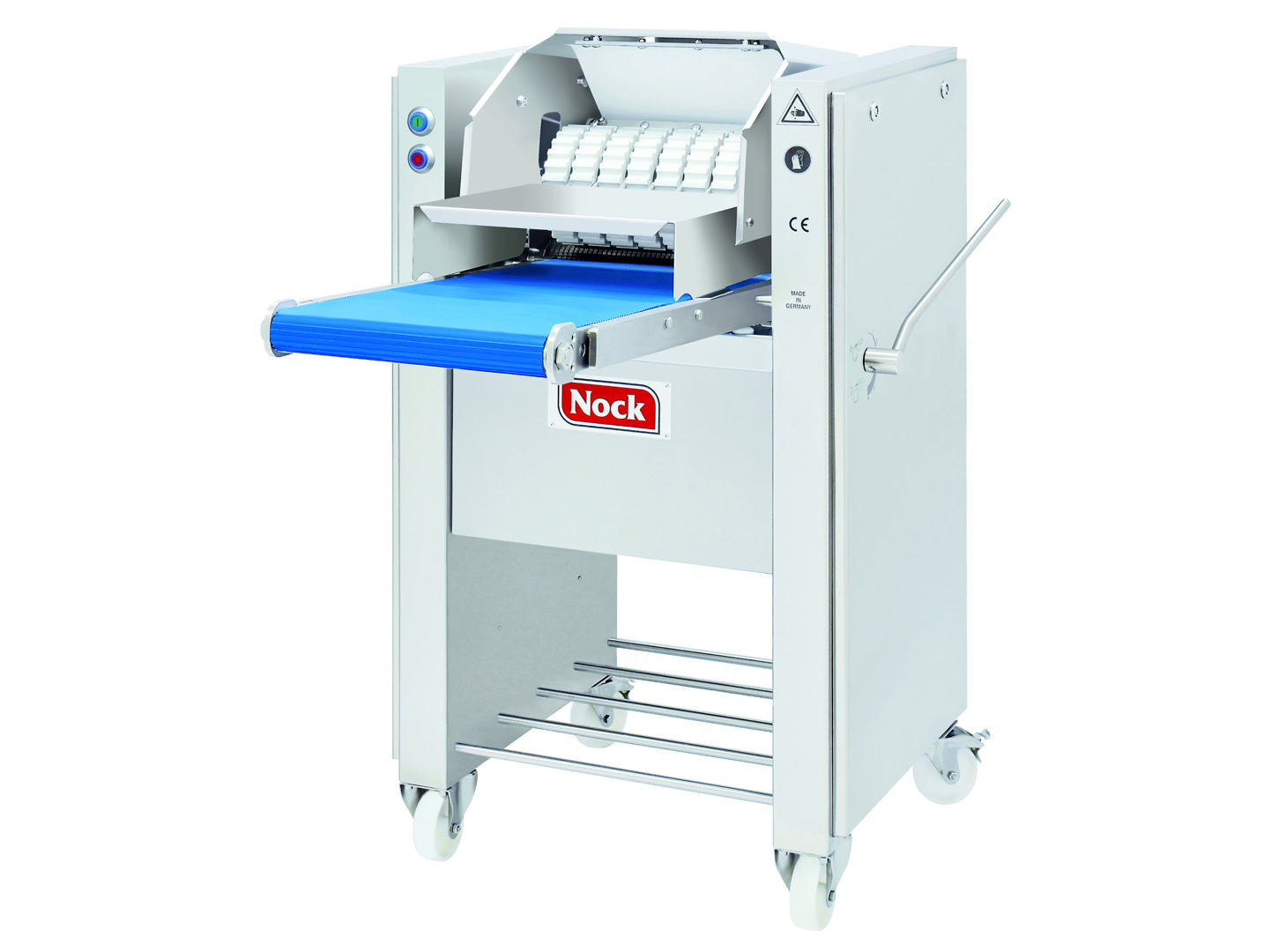

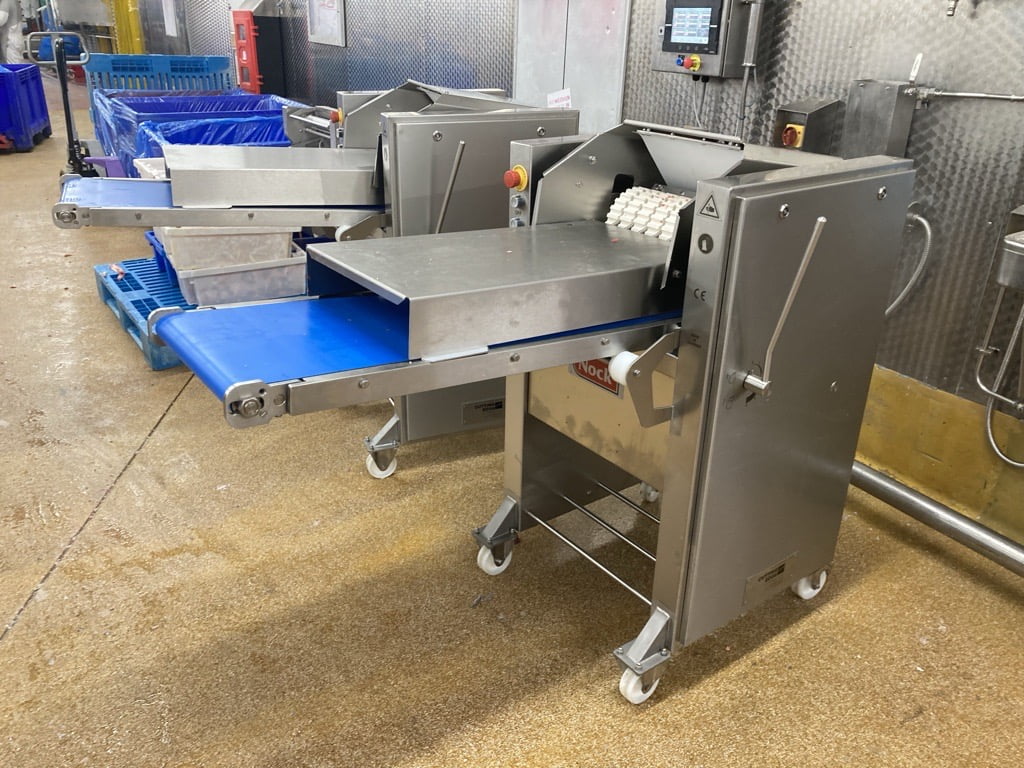

CB 435 | 430 mm | 24 m/min | 90 mm | 0 – 5 mm | 400 mm | (with / without discharge conveyor) 800 x 1190 x 1660 / 1210 mm | 225 / 210 kg |

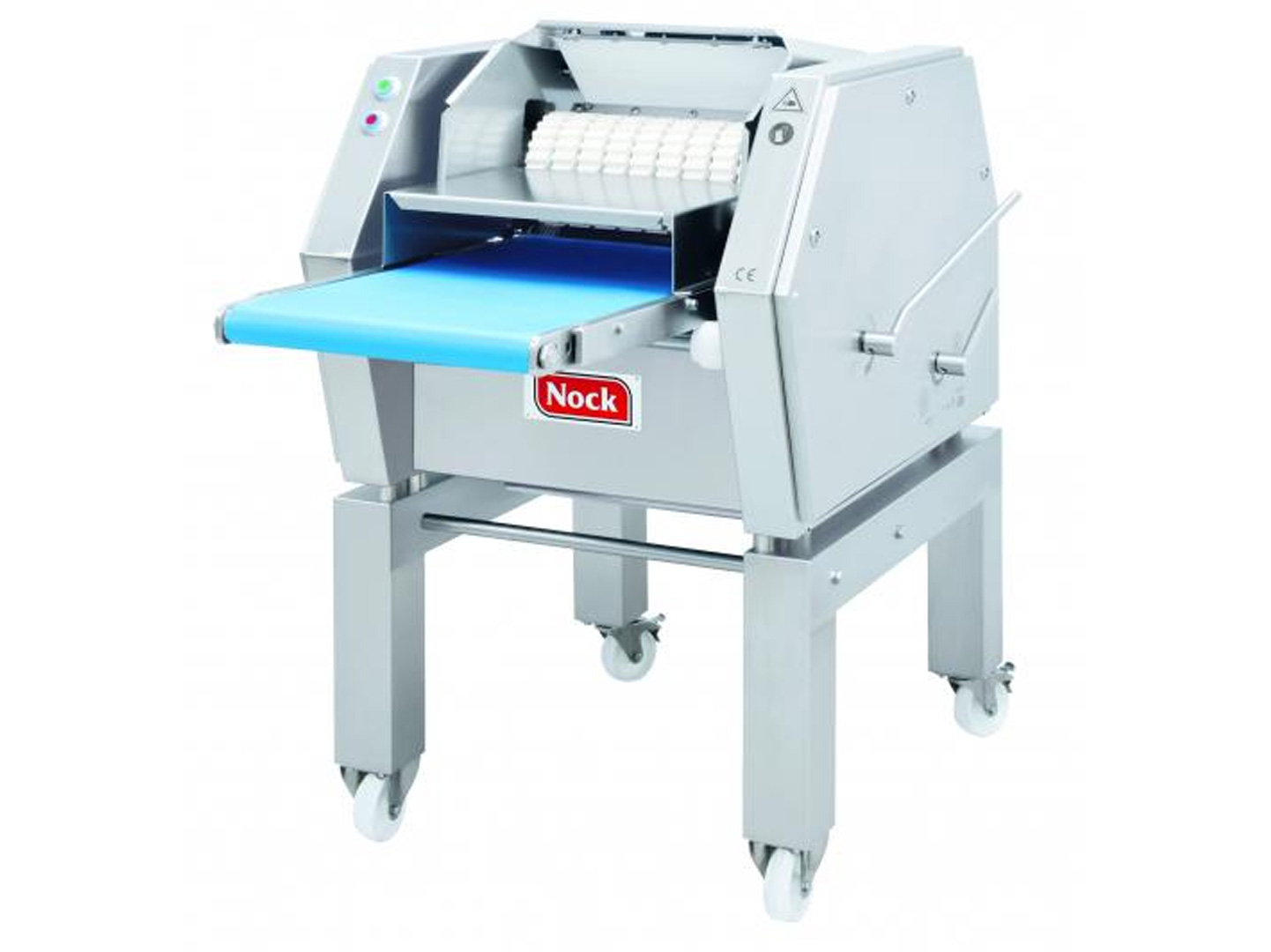

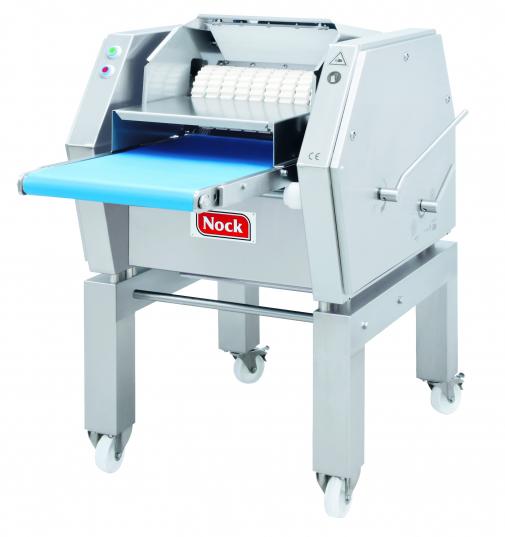

CB 503 | 500 mm | 29 m/min | 120 mm | 0 – 5 mm | 300 mm | 865 x 1190 x 1860 mm | 265 kg |

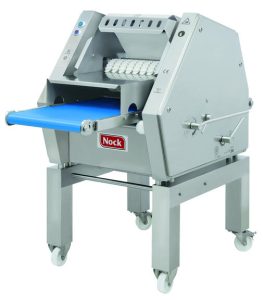

CB 509 | 500 mm | 31 m/min | 120 mm | 0.5mm – 8mm | 300 mm | 980 x 1360 x 1330 mm | 235 kg |
Cutting Edge & German manufacturer, NOCK GmbH are working together to provide an exclusively developed range of machines. Following extensive research and development, this fresh partnership combines 25 years of German engineering excellence with Cutting Edge’s 25 years of experience in delivering sharp, innovative and reliable services.
