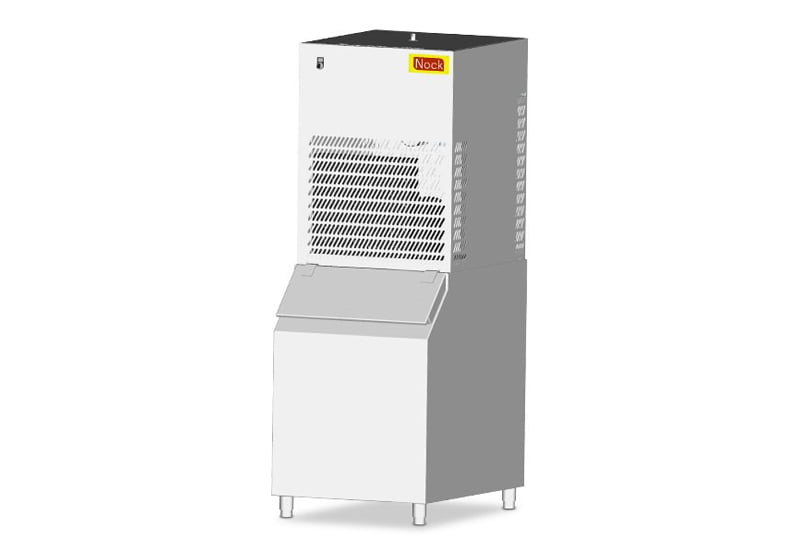

The NOCK scale ice makers differ with known rotating evaporators – and therefore avoid problems such as leakage of refrigerant and ice with germs. The NOCK scale ice makers have a horizontal, stationary freezing disc (evaporator). The water is directly brought onto the disc through a valve and a rotating water distributor from the fresh water supply and scraped off after the freezing process.
Unlike other constructions, the NOCK principal is the evaporator (freezing cylinder) rotates, but the scraper. The refrigerant pipes are tightly soldered on the stationary NSH evaporator. The NOCK scale ice maker does not have a water storage tank (water bath). The fresh water is frozen directly and leaves the machine in less than one minute as ice.
Item Code: 75NO-NSH400
| Ice Output | Refrigerant | Permissible Ambient Temperature | Dimensions | Weight | Water Connection | Electrical Connection | Plug | Electric Connection |
|---|---|---|---|---|---|---|---|
|
approx. 400 kg scale ice / 24 hours |
R449A |
Between +5°C and +25°C |
Without stock container for ice 750 x 1000 x 800 mm with stock container for ice NEV 210 750 x 2000 x 1000 mm |
without stock container for ice 170 kg with stock container for ice NEV 210 250 kg |
¾“ external thread |
3 PN – 400 V – 50 Hz plug: IEC 60309 16A 6h |
1.5 kW |
Cutting Edge & German manufacturer, NOCK GmbH are working together to provide an exclusively developed range of machines. Following extensive research and development, this fresh partnership combines 25 years of German engineering excellence with Cutting Edge’s 25 years of experience in delivering sharp, innovative and reliable services.
